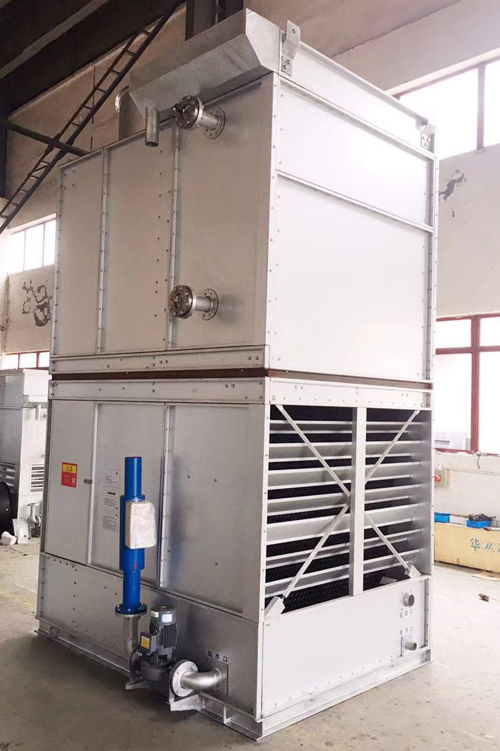

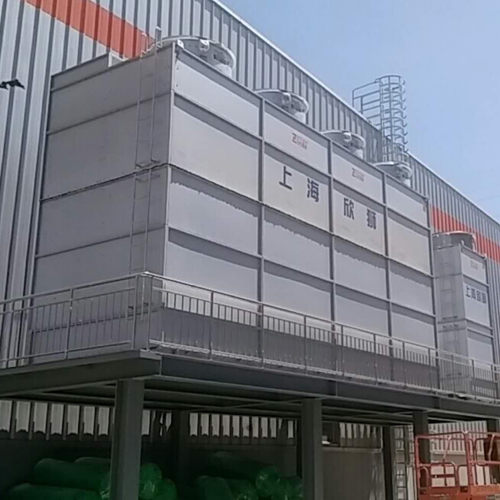

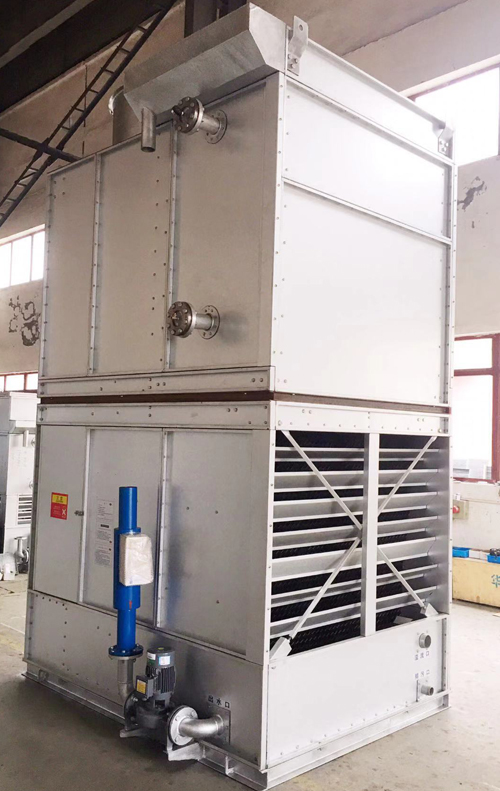

| RAL-430～940外形尺寸和技術參數 | ||||||||||
| RAL/430～940dimensions and technical parameiters | ||||||||||
| 型號 | 名義工況排熱量 | 軸流風機 Axial fal | 循環水泵Water circul atng punp | 重量 Weight | ||||||
| heat reflection under | qty | 風量 | 功率 | 臺數 | 流量 | 功率 | 運輸 | 運行 | ||
| nomnal oper ating mobe | Air flow | POwer | Water fiow | POwer | ||||||
| m³/h | kw | m³/h | kw | Trasportion | Operting | |||||
| KW | qty | KG | KG | |||||||
| RAL-430 | 430 | 1 | 1x65000 | 1x4.0 | 1 | 1x53 | 1x1.1 | 1780 | 3980 | |
| RAL-475 | 475 | 1 | 1x65000 | 1x4.0 | 1 | 1x53 | 1x1.1 | 1810 | 3160 | |
| RAL-495 | 495 | 1 | 1x71000 | 1x5.5 | 1 | 1x53 | 1x1.1 | 1820 | 3170 | |
| RAL-550 | 550 | 1 | 1x71000 | 1x5.5 | 1 | 1x70 | 1x1.5 | 1910 | 4050 | |
| RAL-595 | 595 | 1 | 1x78000 | 1x5.5 | 1 | 1x70 | 1x1.5 | 2000 | 4140 | |
| RAL-670 | 670 | 1 | 1x78000 | 1x5.5 | 1 | 1x70 | 1x1.5 | 2120 | 4390 | |
| RAL-700 | 700 | 1 | 1x78000 | 1x5.5 | 1 | 1x70 | 1x1.5 | 2160 | 4430 | |
| RAL-735 | 735 | 1 | 1x87000 | 1x7.5 | 1 | 1x70 | 1x1.5 | 2210 | 4480 | |
| RAL-780 | 780 | 1 | 1x87000 | 1x7.5 | 1 | 1x70 | 1x1.5 | 2260 | 5020 | |
| RAL-870 | 870 | 1 | 1x87000 | 1x7.5 | 1 | 1x84 | 1x2.2 | 2600 | 5730 | |
| RAL-940 | 940 | 1 | 1x11000 | 1x7.5 | 1 | 1x84 | 1x1.1 | 2650 | 5780 | |
| 型號 | 尺寸 Dimensions | 進氣管 | 出液管 | 補水管 | 排污口 | 溢流口 | |||||||||
| A | B | C | D | E | F | G | H | J | Airinltpip | Wateroutlet | Makeup pipe | Discharg | Overflow | ||
| a | b | c | d | e | |||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | ||
| RAL-430 | 1830 | 2410 | 1977 | 1670 | 530 | 1152 | 2387 | 4177 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-475 | 1830 | 2410 | 1977 | 1910 | 530 | 1390 | 2387 | 4417 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-495 | 1830 | 2410 | 1977 | 1910 | 530 | 1390 | 2387 | 4417 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-550 | 1930 | 3010 | 1977 | 1670 | 530 | 1152 | 2387 | 4177 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-595 | 1930 | 3010 | 1977 | 1670 | 530 | 1152 | 2387 | 4177 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-670 | 1930 | 3010 | 1977 | 1910 | 530 | 1390 | 2387 | 4417 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-700 | 1930 | 3010 | 1977 | 1910 | 530 | 1390 | 2387 | 4417 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-735 | 1930 | 3010 | 1977 | 1910 | 530 | 1390 | 2387 | 4417 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-780 | 1985 | 3210 | 1977 | 1670 | 530 | 1152 | 2387 | 4177 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-870 | 1985 | 3210 | 1977 | 1910 | 530 | 1390 | 2387 | 4417 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
| RAL-940 | 1985 | 3210 | 1977 | 1910 | 530 | 1390 | 2387 | 4417 | 270 | DN￠80 | DN￠80 | DN25 | DN￠50 | DN￠50 | |
